Topic: 5.3 MD1A start parameters

Hello! Can someone guide me how to get started with setting up the MD1A to get 5v from channel 8? I am using 12v input voltage and also intend to read the voltages 0-5v on channels 9 and 10, which I have jumpered to the appropriate adc contacts on the unit. Any assistance with the registers is very appreciated!

2 Reply by Konstantin, CANNY logic

  • Konstantin, CANNY logic
  • Konstantin, CANNY logic
  • Administrator
  • Offline
  • Registered: 19-02-2013
  • Posts: 212

Re: 5.3 MD1A start parameters

All the information and examples you might need to implement it are in the documentation:

https://cannylogic.com/docs/c53md1a/io/

https://cannylogic.com/docs/c53md1a/adc/

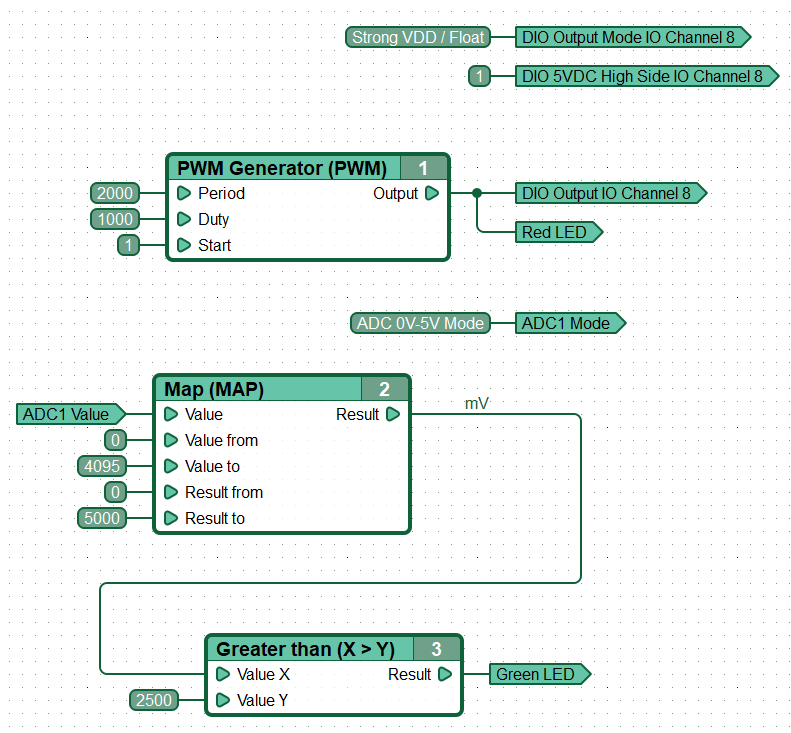

Anyway, I have prepared an example for you to start with:

Post's attachments

5vdc.png, 49.33 kb, 791 x 733
5vdc.png 49.33 kb, 206 downloads since 2025-07-01
