Topic: LIN BUS

Hi all,

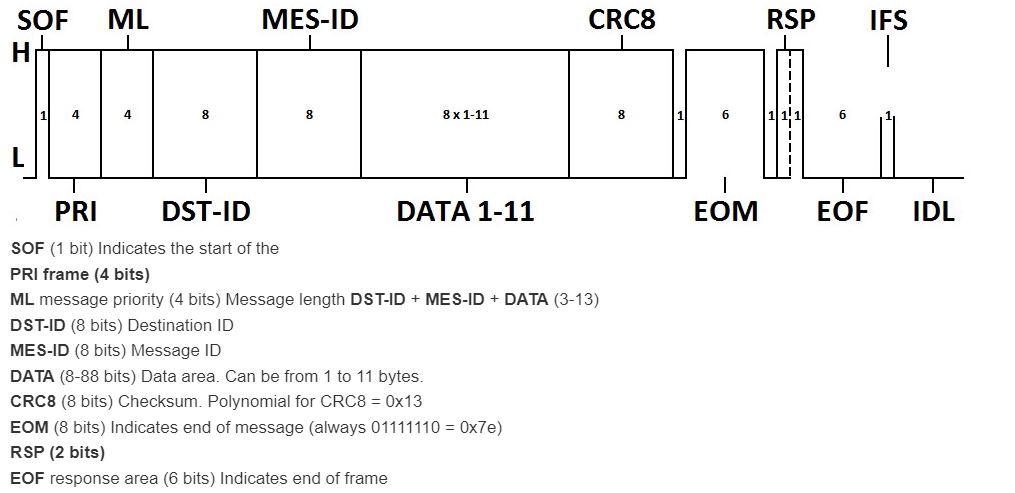

  I am currently working on a Lexus BEAN MPX bus ( as shown in the attachment), it is running in ring mode ( MPX TX and MPX RX) , baud rate is 10kpps , at 12v logic level (reference to 0v ground) , I was looking at the physical layer compare to LIN and CAN, just curious if I can tap one of the HR DInput to sniff the signal ? all I wanted is to listen to the message content ( MES-ID and DATA 1-11) , is it possible?

Carlos

Post's attachments

Attachment icon BEAN.JPG 62.95 kb, 35 downloads since 2023-06-05

2 Reply by Konstantin, CANNY logic

  • Konstantin, CANNY logic
  • Konstantin, CANNY logic
  • Administrator
  • Offline
  • Registered: 19-02-2013
  • Posts: 174

Re: LIN BUS

Where there is currently no BEAN MPX implementation for CANNY.
