Topic: CAN 29bit 250/500K

Hi Konstantin, I try to read CAN 29bit at 250 and 500K, but I didn't have answer, I sent commands to have answer but nothing come to me.
CANNY 7 is compatible with CAN 29bit? If yes, how can I do to send and receive data about it?
In CAN 11bit I tried perfectly, I sent and received data normaly, so in 250 as 500K.

Thanks by your support.

2

Re: CAN 29bit 250/500K

You can send to CAN in Extended Frame Format (29bit ID) from diagram and from Canny CAN Monitor too.
Please see online documentation: http://wiki.cannylogic.com/index.php?ti … CAN_Driver and Help in main menu of Canny CAN Monitor.

Post's attachments

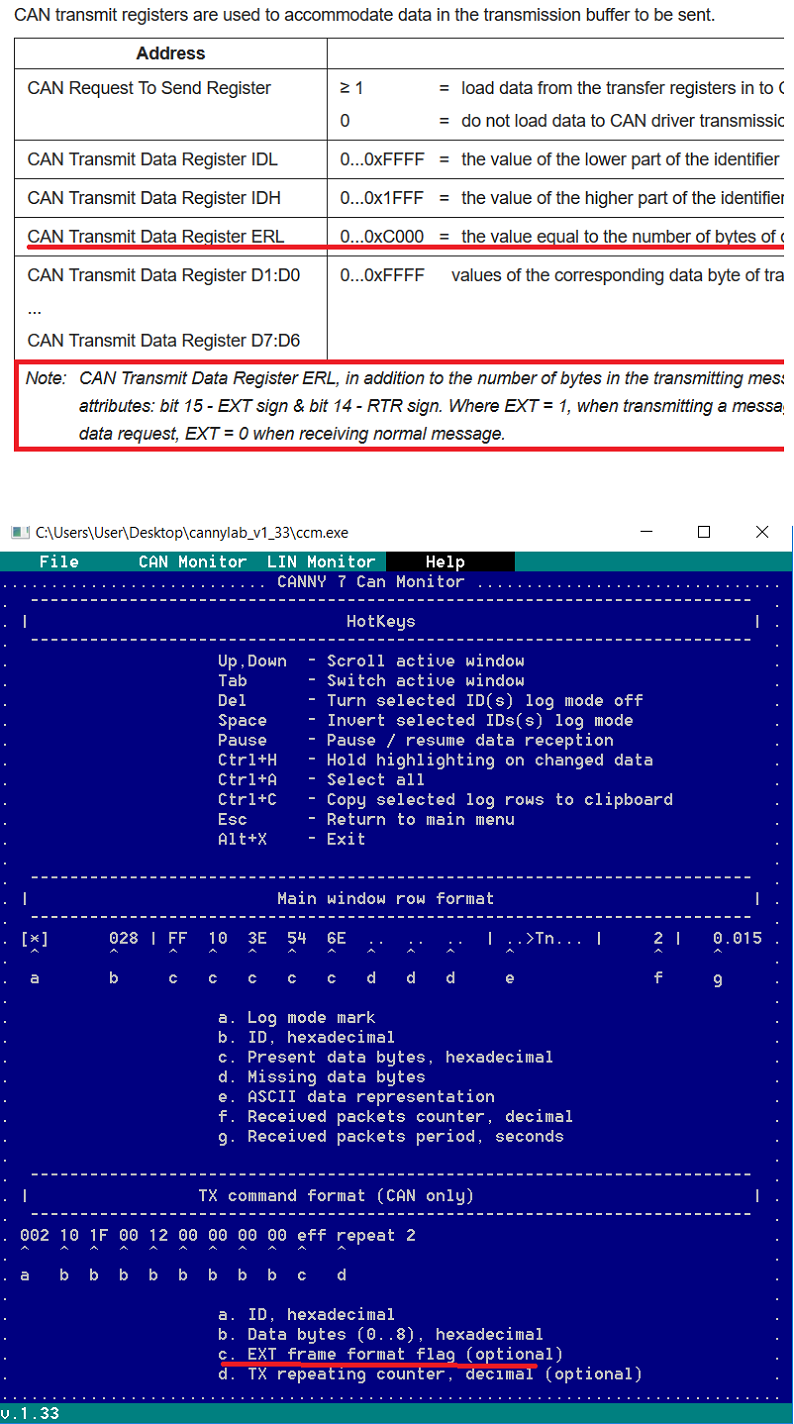

eff.png, 312.74 kb, 794 x 1424
eff.png 312.74 kb, 447 downloads since 2018-05-09

3

Re: CAN 29bit 250/500K

Hi Konstantin,

Thanks for your support, I will do it, and reply after.

4

Re: CAN 29bit 250/500K

Hi Konstantin,

I tried to follow all steps to can communicate with CAN 29bit, but I not have success, in CAN 11bit I communicate normally, please check the answers bellow.

In 11bit all come ok
sent: 7DF 02 01 0D 00 00 00 00 00 00
Receive: 7E8 03 41 0D 23 00 00 00 00

In 29bit not ok,

sent: 18DB33F1 02 01 0D 00 00 00 00 00
sent: 18DB33F1 02 01 0D 00 00 00 00 00 1
sent: 18DB33F1 02 01 0D 00 00 00 00 00 EXT=1

In 29bit case, the data not arrive at ECM, I know this because I put oscilloscope in CANH and CANL and not happens when I sent data.

I should receive the data: 18DA10F1 03 41 0D 23 00 00 00 00

I believe that Im doing anything wrong

5

Re: CAN 29bit 250/500K

You must send:

18DB33F1 02 01 0D 00 00 00 00 00 eff

As it's shown on Canny CAN Monitor' Help screenshot in my previous message.
